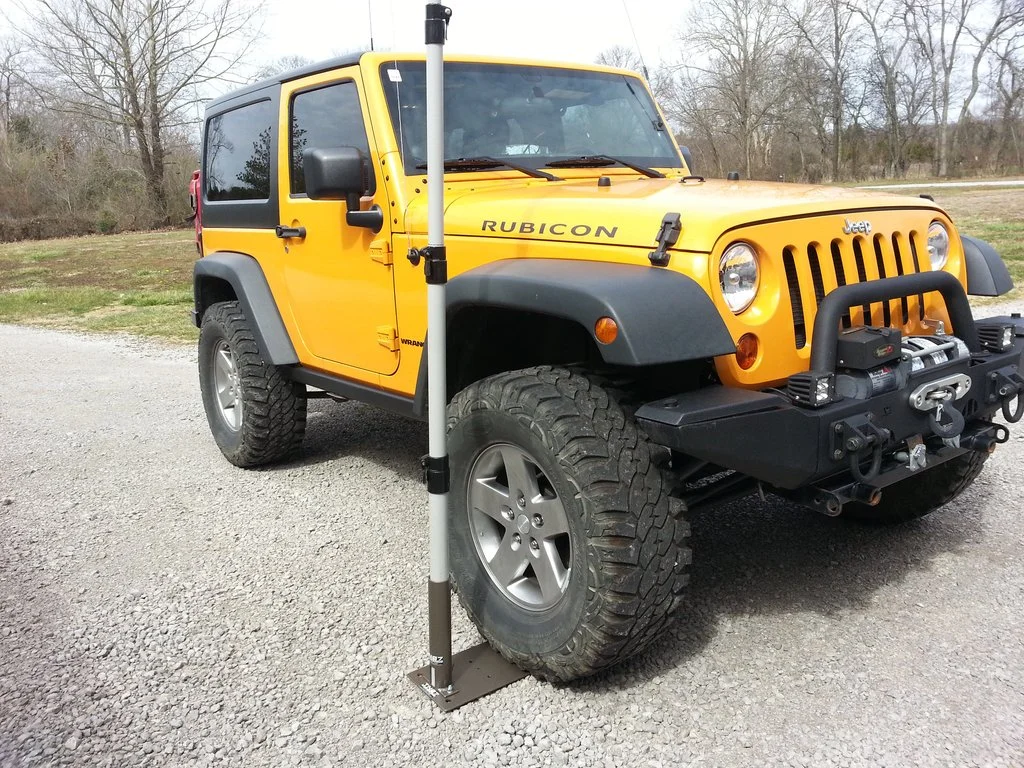

MSC-2.0 - 2.0" Mast Support System - Drive On, Ground Mount, & Vehicle Hitch Mount Combination

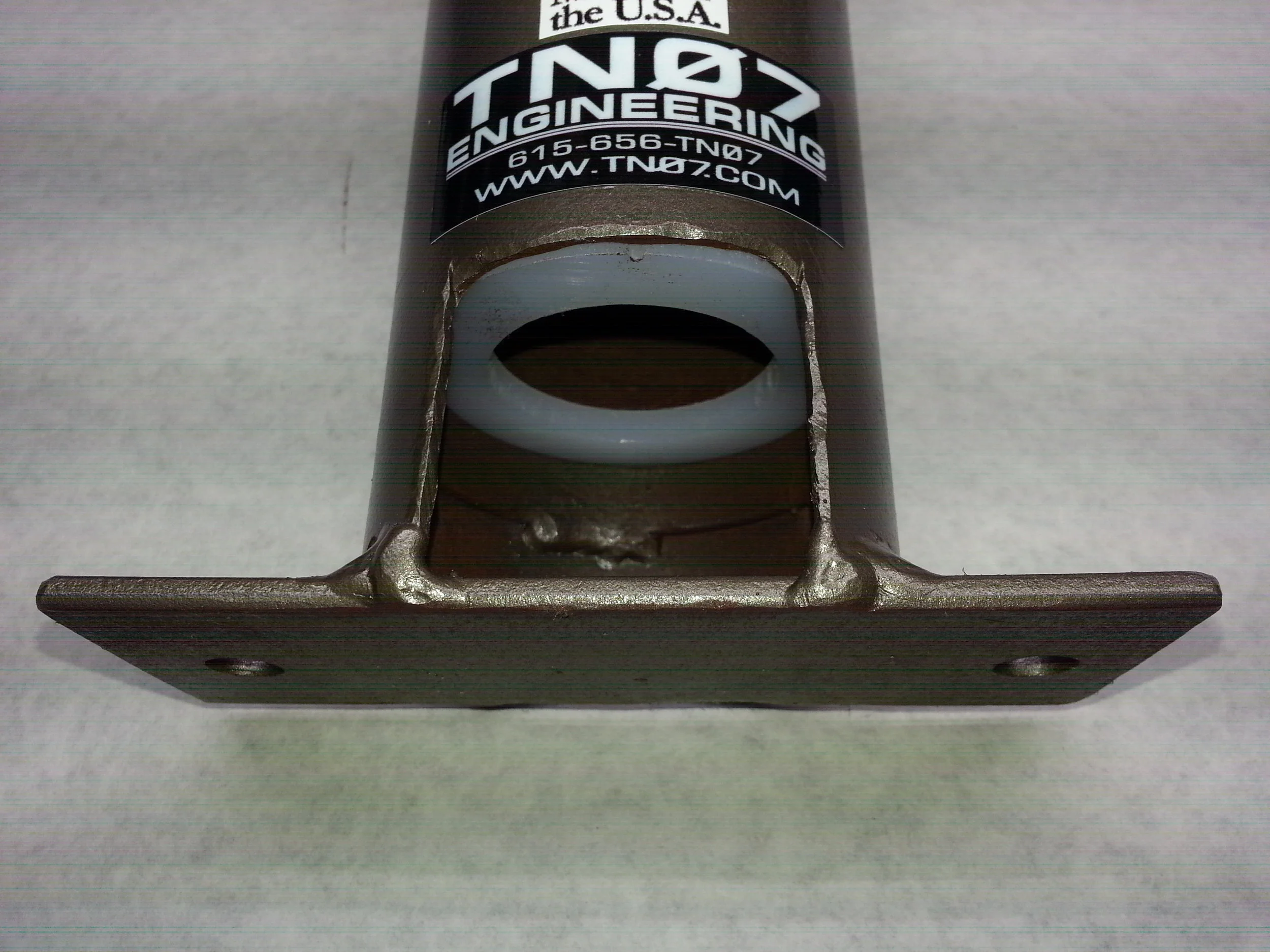

- 10" x 22" Steel plate for mounting the support tube in a secure position
- 2.0" ID support tube with internal friction-free weight bearing surface which allows coax, cables, electrical wiring to be through-fed down the center of the tube. Internal wiring allows mast to rotate without fouling guy wires.
- Will accommodate 1.75 - 2.0 inch OD mast sizes
- Mast may be rotated or locked in place
- Plated U-bolts and stainless steel hardware
- Unique clamping design
- Powder coated - black in color

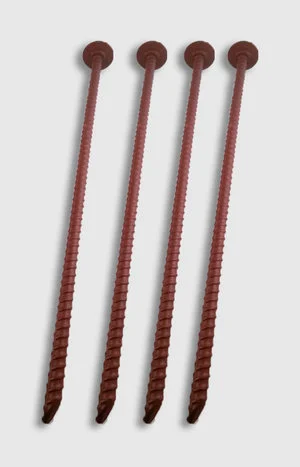

- Securing stakes are included for semi-permanent installation. The stakes will penetrate up to 16" into the soil.
- Square U-Bolts are supplied in the event the owner wishes to attach the mast support tube to a draw bar
- Mount can be held in place by weight placement
- Includes 1 steel plate, 1 support tube, 2 bolt sets, 4 securing stakes, 2 square U-bolt kits
